**Lesson 10 **

**Spectrum - Quick Start**

In this lesson we discuss the basic definition of the cycle analysis and learn how to create the simplest forecast models based on cycles. This issue will be considered in more details in the other lessons.

Before starting this lesson I would like to show how to generate the
projection line based on fixed cycle quickly. The pictures below will
illuminate the whole process in five minutes:

1) Download the price history

2) If this is the final forecast, i.e if you use all available price history

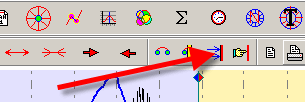

data to generate the projection line, - click this button to set the Learning
Border Cursor to the last available price bar:

3) Click this button:

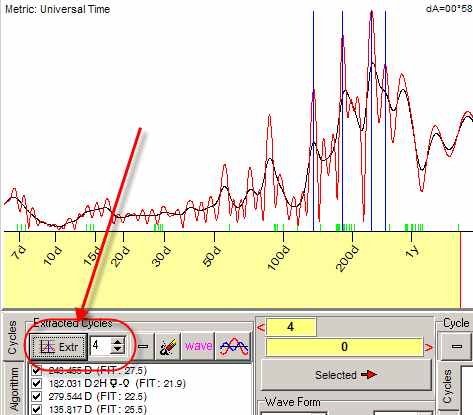

4) Do this to extract major cycles:

5) Click this button to generate the projection line:

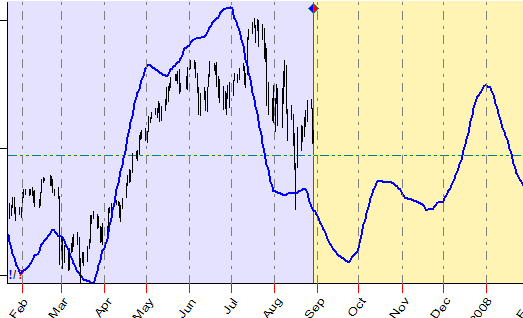

6) After several seconds, the projection line based on these cycles will
appear:

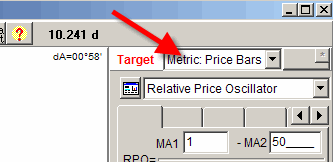

7) If you are working with intraday data, I recommend to use the bar metric
to calculate Spectrum:

It was the brief explanation for very busy persons. Now I will explain all
details relevant to this technology.

**Basic Definitions**

The cycle is something that repeats itself in time. The simplest example is a workday routine: enter your office 9AM, do your duties, 1AM is a lunch-time, 4:30PM go home; same schedule day by day. Another example is a year-round cycle, annual cycle - from January 1 to December 31; same order of days, weeks and months year by year. If you talk to scientists and engineers, they will add cycles in space, not only in time; the simplest example of such a cycle is a bus route - from station A to station B, again and again. Waves - different waves - are also samples of the cycles.

We can talk about different cycles indefinitely. The most fascinating thing
with the cycles is that they make possible a forecast. If we know the cycle, it
is easy: find out where you are in this cycle, and you are able to tell what
will happen in a minute, in an hour, next kilometer, etc. This is why the
scientists love cycles. There is one more reason for this love: many cycles can
be described by *equations* and *functions. *It means that (knowing a
cycle, of course) we are able to program the cycle and the forecast.

Now, I believe that you have heard enough in your life about cycles in general. In this article we will deal with the cycles that can be described by harmonic functions mostly, i.e. represented by sinus/cosine waves. This is a sample of sinus (cosine) curve:

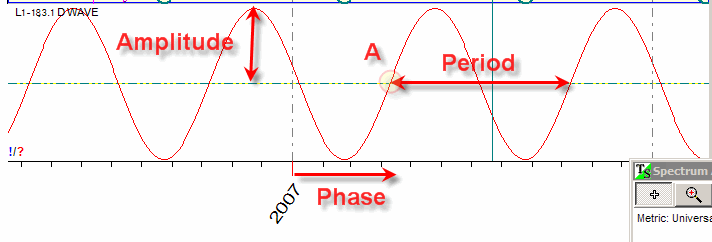

To describe any sinus wave, you need to know: a **period** - the length of
the cycle,
**amplitude** - the strength of the cycle (you can see it on the diagram as
the height of the sinus curve) and a **phase - **the angle that defines the start of
the cycle (the start point on the diagram is
marked as "A").

Mathematicians know many ways to play with the cycles. They have found a way
to summarize several cycles at the same time. It is called **superposition** of
the cycles; the result is a cycle as well. The
resulting cycle may look like this one:

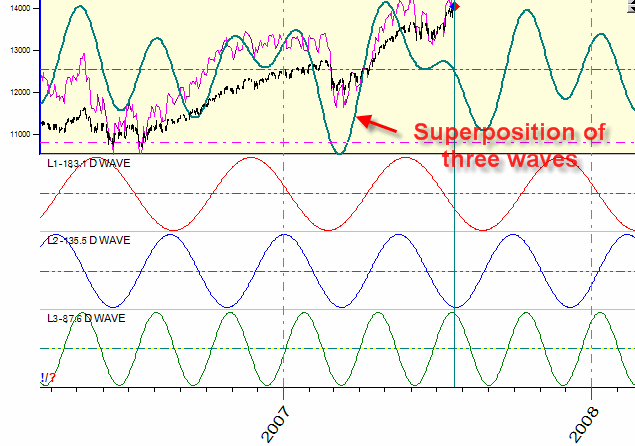

Here I did the summation of 183.1, 135.5 and 87.6 days cycles. It is displayed together with Dow Jones Industrial Index chart (a black line) and its 300-bar detrended oscillator. In regards to our main goal, making a forecast, superposition of the cycles is a very useful thing as normally we have many different cycles working at the same time.

Other interesting things that you need to know about the cycles are:

**Weighting**: In the previous example the same weights were used for all
three cycles. Imagine that you know that one of the cycles is more important
than others. You can assign to that cycle double meaning (same period, same
phase, double amplitude). It leads to a different appearance of the resulting
curve. Thus, playing with cycle weights we can significantly improve our superposition
curve.

**Overtones:** Suppose you touch the guitar string, and it starts
vibrating. How many different sounds do you hear?

First of all, you will hear the main vibration of the string; on the picture above this is the upper vibration involving the whole string length. Besides, you will hear the vibration of the half of the string length; it is the next "octave" of the main sound. Also you will hear 1/3, 1/4 .. length vibrations. These "additions" to the main sound are called overtones. Some overtones sound loudly while others are very quiet; it is the reason why every musical instrument makes its unique sound.

Overtones can be used not only in music. They can add something meaningful to

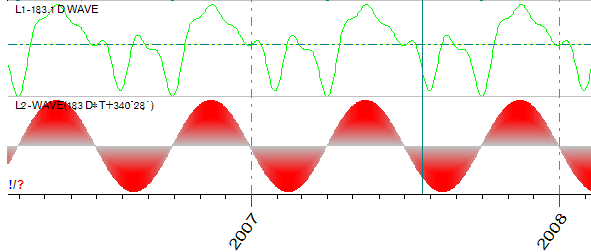

any cyclic process. See the difference between a pure sinus wave calculated by ** Timing Solution**
(a red one) and the same wave
with the overtones - enriched wave (a green curve):

I used there 6 overtones.

**Nyquist frequency:** it is named after the Swedish-American engineer Harry
Nyquist; he has spent a lot of time determining the minimal time tick to be able
to see a cycle. For us, it is important to remember that if we are working with daily data,
it is no use to try catching the cycle lesser
than two days (nyquist frequency); if we have 15 minutes data, the 30
minutes is the shortest cycle to use. Based on my practice, I would recommend
using 5-7 ticks; i.e. for daily data use the cycles with a period higher than 5-7
days. I would say that Nyquist frequency is a door to a kingdom of Chaos.
Keep this door locked.

**Spectrogram**

Try to produce different sounds in a small room. You will easily find out that some of them sound very well there, loud, you can enjoy them; while others sound very quiet, the room absorbs them. You may say that the room itself "likes" some sounds and "does not like" others. You can image the spectrogram as a result of "asking" some financial instrument how well a cycle fits to it.

See a sample of a spectrogram created by ** Timing Solution**".

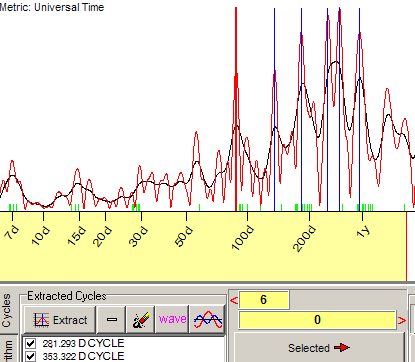

Download any financial data and click
"Spectrum" button. You will get something like this:

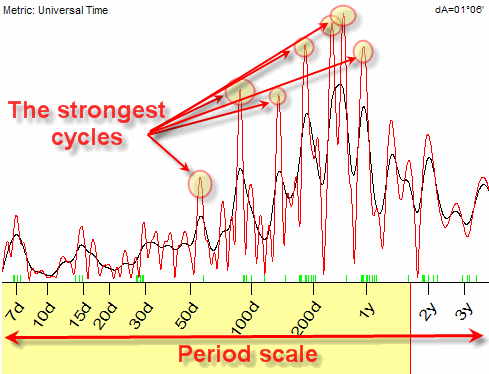

This is a spectrogram. The X axis on this diagram corresponds to the period of the cycle (or a frequency of the sound in the example above), while Y is a strength of this cycle (more exactly, spectrum density). If we compare this periodogram to the sounds in the small room, the highest cycles for our financial instrument are like the loudest sounds in that room. The periodogram simplifies our life: when we have it, our task is only picking up these cycles and asking the program to cook a projection line from them.

**Picking up the most important cycles**

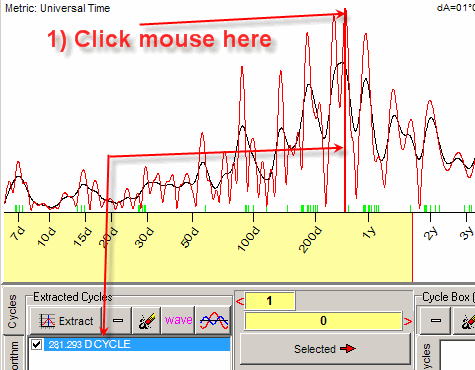

This is a very simple procedure. Just click the mouse around the peak you want to catch:

Even if you are missing the peak itself, the program automatically will catch the highest point, put this cycle into "Extracted Cycles" window and mark this cycle on the spectrogram by a vertical line.

Do this procedure several times while picking up the most important cycles:

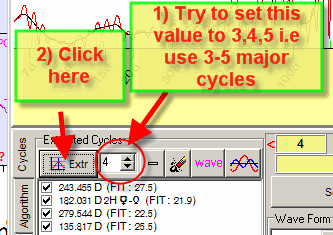

You can also perform this procedure automatically: click "Extr"
button and define the amount of the strongest cycles you need to extract (four
cycles in this example):

**What cycles are important?**

The new "multiframe technology" developed in Timing Solution allows to make a decision regarding a cycle's significance very easily. There are 2 criteria and 2 recommendations there:

- choose the highest peaks;
- the width of a chosen peak should be as narrow as possible:

The higher the peak, the bigger the amplitude of this cycle. The narrower the cycle, more energy is concentrated in this cycle.

Recommendations:

- Do not use too many cycles. There are two extremes here: the usage of just one dominant cycle or the usage of hundreds of different cycles, dominant and not quite dominant. I believe that normally 3-10 cycles define the weather on the stock market. Though these cycles change constantly change, multiframe spectrum handles this situation the best way.
- If you have a choice between short-term "good" cycles and long-term ones, choose the short term cycles. They carry the maximum information regarding the nearest price movement. From other side, the short term cycles can be a source of noise, so you need to try different combinations to find the best balance between the noise and the information.

**One mouse click - and the forecast is ready**

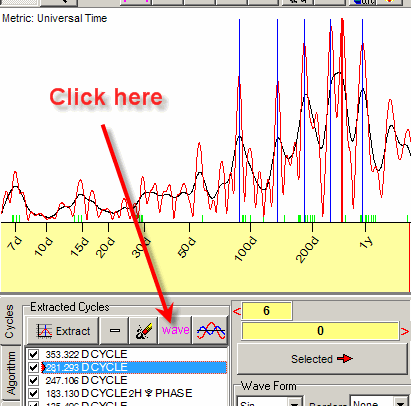

If you picked up the most important cycles, click this button:

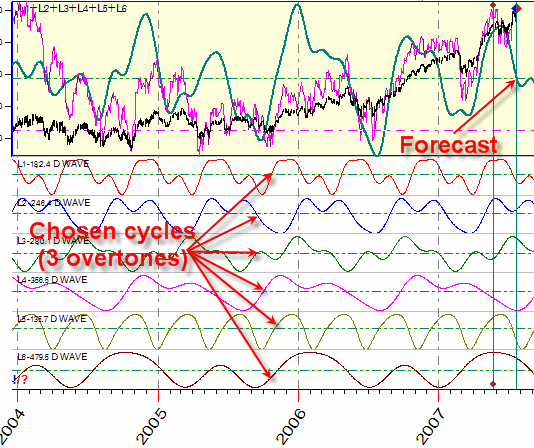

In the Main screen, the forecast based on chosen cycles appears:

As you have guessed already, the forecast is a weighted superposition of the chosen cycles. The program finds the weight of each cycle automatically aligning them to the previous price movement.

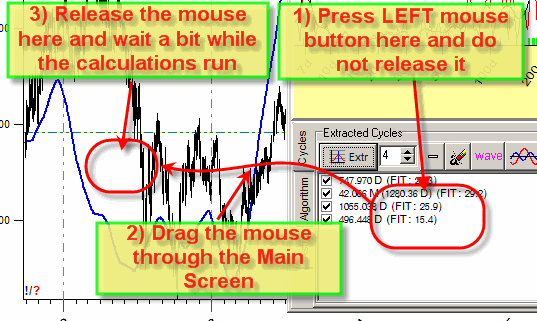

To save some seconds instead of clicking the "wave" button, you may simply drag these cycles from the "Extracted Cycles" list in the Spectrum module to the Main screen:

To prove you that this technology is worth of your attention, see here 7 projection lines created for a randomly chosen LBC.

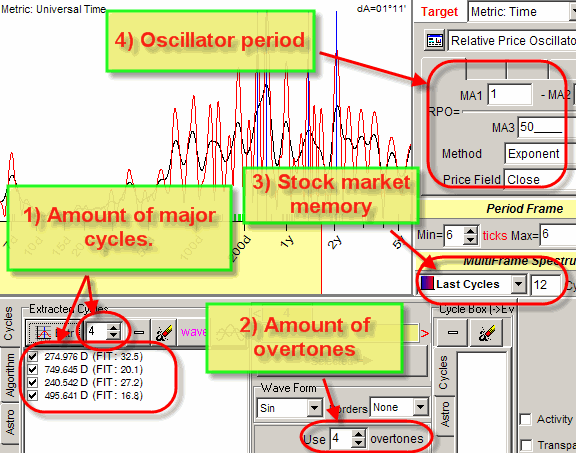

Here are the most important parameters to vary:

1) First of all, I would recommend to play with picking up different cycles. Use 2-10 cycles; usually this is the amount of cycles really playing some part for the financial instrument.

2) Next thing to vary is the amount of overtones. Usually I start with the pure cycle (just 1 overtone), then I increase this number. Do not use small values for "Min overtone" parameter (see Nyquist frequency)

3) Also you can play with "stock market memory" parameter. The smaller value of this parameter, the more our cycles are concentrated on the most recent price data. Usually i try these numbers: 3, 7, 12.

4) You may try as well to play with the oscillator's period.

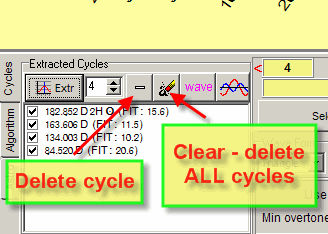

You can delete any chosen cycle or delete all of them using these buttons:

This allows you to work with different cycle patterns and projection lines generated by these cycles.

You can delegate the choice of cycles to the program. You will do just one mouse click on this button:. The program recalculates the spectrogram and extracts strongest cycles automatically.

One more approach is to make a forecast using several projection lines; it is called Committee. We generate the projection lines one by one and put them into Strategy window by clicking on this button in ULE tab:

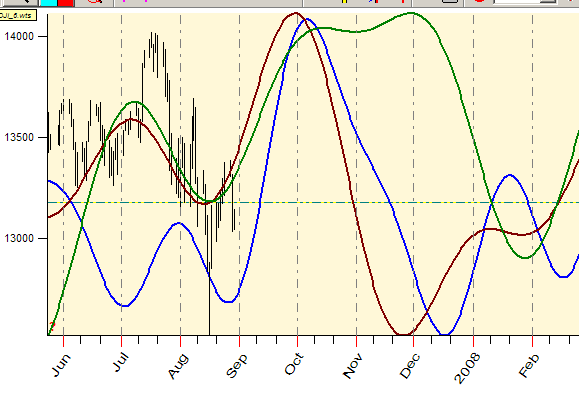

These projection lines are visible on Main Screen now. Here I put three projection lines varying the stock memory parameter:

**Detrending, or what to forecast?**

Mostly the financial instruments have some trends. Therefore, it is mathematically necessary to use indicators instead of the price data: our goal is to forecast as close as possible to the functions used in forecasting, i.e. sin curves. To reach this goal, we do not use the price itself to calculate the spectrum diagram. Instead, we use the detrending indicator - the relative price oscillator with the period=100 bars (as an example):

You can set this parameter manually depending on what swings you want catch. Or you can use other indicators as a forecast target - like RSI, ADX, Volatility and others.

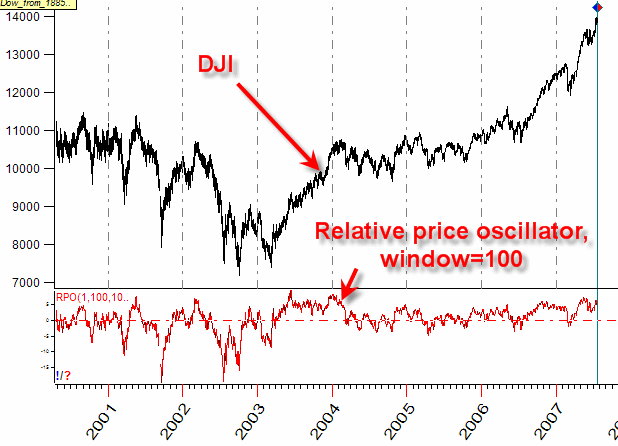

In other words, in this particular case we perform the spectrum analysis not for Dow Jones Industrial index with its up and down trends, but for its oscillator:

This oscillator is much more convenient for the cycle analysis.

**Scientific parallels**

In this lesson I used the lexicon of the spectral analysis science. However, this technology
can be expressed using different scientific accents. Let me explain it.

If you are mathematician, you will deal with the cycles from the point of view
of Fourier Transform. If you
are a professional in Digital Signal Processing science (DSP), you would prefer speaking in terms of
filters. The spectrogram shown above can be interpret as a filter that
converts "white noise" (data set that has no selective cycles) to the analyzed
financial instrument. These two are practically the same math entities; only accents
are made on slightly different sides.

In the following classes I will try to make the parameter (getting results)/(learning time) as high as possible.
