"Smart" charting tools in Timing Solution

Though Timing Solution is not a technical analysis software, we have added to it a set of charting tools. Timing Solution has a great variety of them. You will find there the simplest charting tools - such as trend lines, Andrews pitchforks, Fibonacci levels, Gann fans, etc. Also, we have provided new charting tools, or "smart" charting tools. These charting tools are quite simple in use while having complicated math behind. You can read more about them here: http://www.timingsolution.com/TS/Study/ts_charting_tools/index.htm

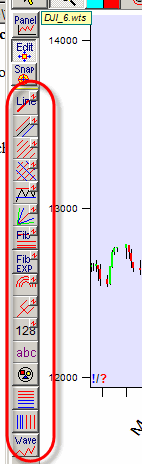

All buttons related to the charting tools are situated on the left side of the Main window. See this set of buttons; you may draw the most popular charting elements with them:

Let us draw one of them, Andrews pitchfork. Follow these steps (they are pretty much the same for all charting tools):



For this particular tool, three mouse clicks define its anchor points  (the anchor points are marked by yellow bars):

For any other charting tool, the appropriate instruction defines its anchor points.

If "Snap" button is pressed, the program automatically sets the anchors on the nearest highest high or lowest low while you move the cursor across the screen:

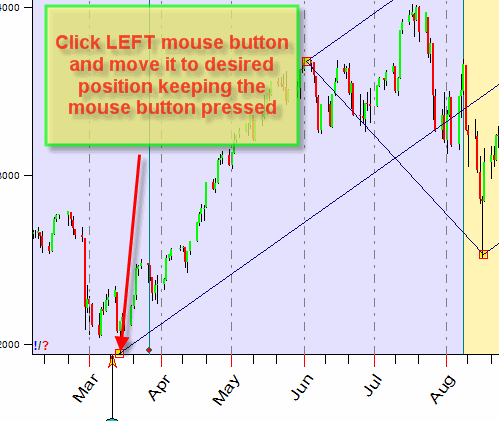

You can easily modify the position of anchors; simply make LEFT mouse button click at this anchor and drag the mouse cursor keeping the mouse button pressed:

BTW, if you plan to modify the anchor position be sure that "Edit" button is pressed:

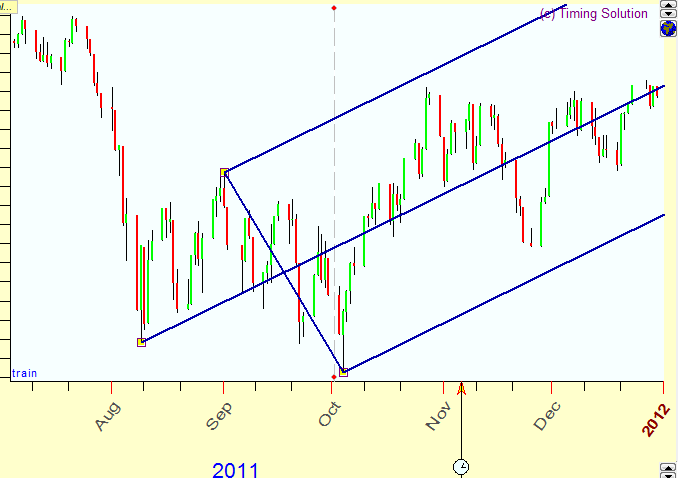

Practically all charting tools in Timing Solution have many variations. As an example, have a look at the classical Andrews pitchfork:

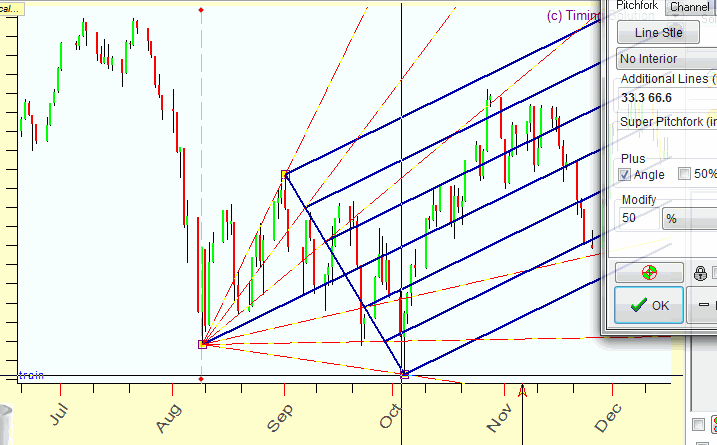

Here is the variation of that same pitchfork:





To vary any charting tool, make RIGHT mouse click on the anchor (small yellow bar). You will get the dialog box to customize your charting tool:

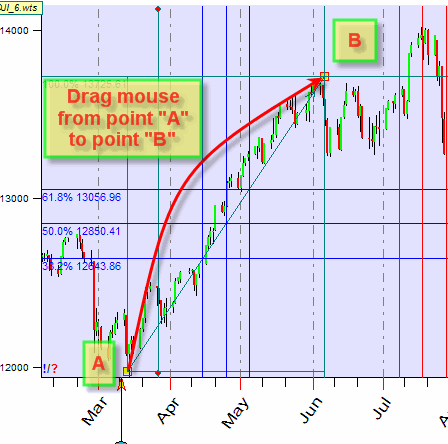

The Andrews pitchfork requires three anchor points. Some charting elements require two anchor points only. For example, to draw the Fibonacci grids, simply drag the mouse from one anchor point to another:

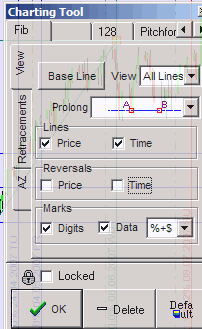

As with the pitchfork, using the RIGHT mouse button, click on any yellow anchor bar to modify your Fibonacci grids (colors, price/time grids, marks):

    In "Retracements" tab you can add a new line and set the color and the width for any of these lines:

    Clicking "Panel" button:







you will get the :Charting Panel" window:

Here you can save or download our charting elements, delete them, make a copy of any charting element, lock/unlock them.

As so far, we have discussed classical charting tools, i.e. such things as pitchforks, trend lines, Fibonacci, Gann fans and many others. Besides them, it is possible to apply more advanced "smart" charting tools that employ complicated math.

We recommend to start with the simplest ones that you get after clicking "Wave" button:

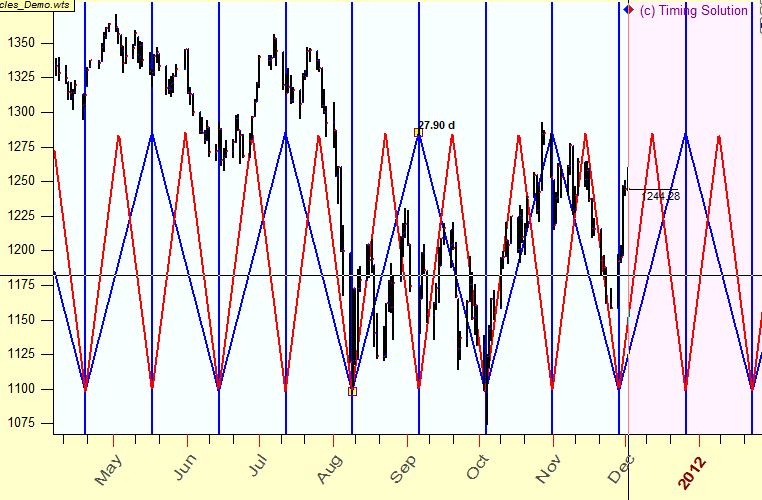

These charting tools allow to conduct visual cyclical analysis, i.e. draw regular waves overlaying the price chart. This is "Saw" wave with one overtone:

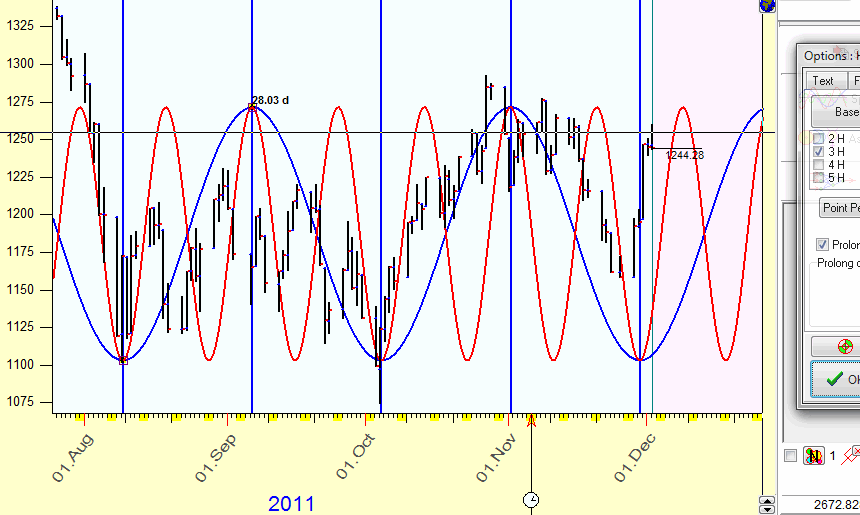

This is a harmonic wave:



In advance section under this button:

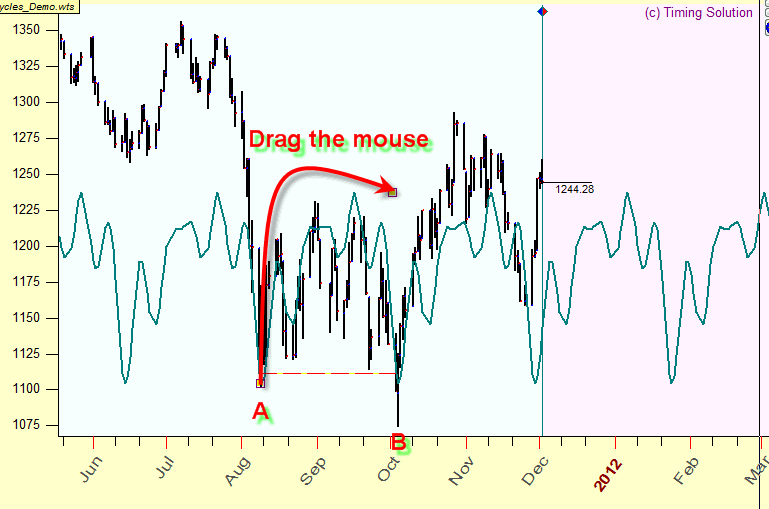

you will find more advanced cyclical charting tools. One of them is Fourier charting tool. It conducts Fourier analysis fantastically fast while you move the cursor over the screen:





As you see all these charting tools are prolonged into them future, i.e. they can be used as forecasting tools.

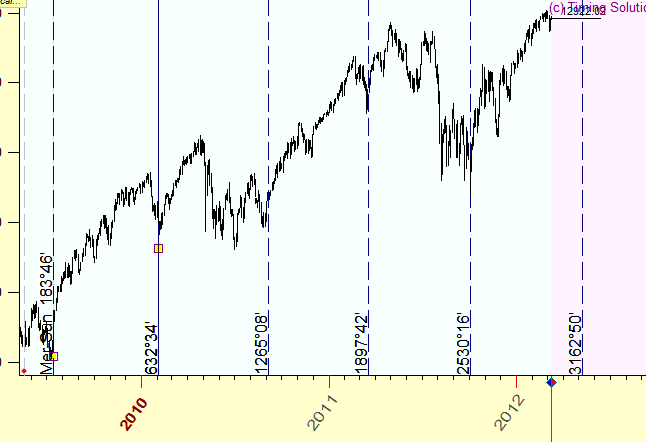

We recommend to play with a special category of charting tools - astro based charting tools. These charting tools are very popular among Timing Solution users. As an example, look at the chart below. It shows planetary equidistant lines based on Mercury phases:





These techniques are described in details in this class: http://www.timingsolution.com/TS/Study/ts_charting_tools/index.htm
